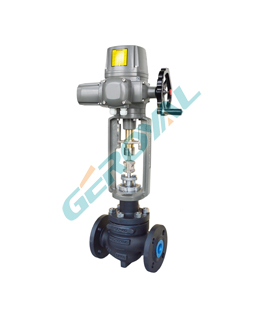

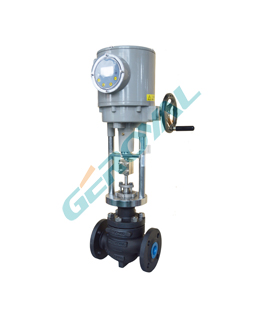

50D01 Single seat regulating valve

810D top guided single seat control valve, the top guide not balanced structure, high strength, heavy load, S flow, pressure drop, flow coefficient, wide adjustable range and high precision flow characteristics. The type of regulating valve suitable for small pressure conditions, close tight, suitable for medium flow or pressure regulation.

File Download

Technical Parameters Structure and materials Specification parameter Quality Assurance

810D top guide type single seat control valve, the top guide not balanced structure and has high strength, heavy load, an S-shaped channel, pressure drop, flow coefficient, can adjust in a wide range, flow characteristics of high precision. This type of adjustment valve is suitable for the condition of small pressure difference, close the tight, suitable for the adjustment of medium flow or pressure.

Product features
The valve seat is made of screw in structure, has the advantages of reliable performance, convenient replacement and maintenance, etc., to solve the problem of the traditional no valveseat body leakage can not be replaced. Extended service life. The open design, the media tendsto open the valve opening direction, good controllability,flow characteristics and small distortion,According to the working condition, the electric or pneumatic actuators can be controlled.

Design features
Top guided
Unbalanced internal structure
Easily replaceable structure of valve seat
Any configuration of electric / pneumatic actuator

Technical parameters
Body form：Straight S type casting valve
Spool form：Unbalanced type single seat plunger valve
Nominal diameter：DN15～300mm；NPS 1/2～12"
Applicable temperature：-196～+550℃（Optional）
Connection form：Flange, welding, thread
Flange distance：Meet IEC 60534
Gland form：Bolt pressing type
Sealing gasket：Metal graphite wound gasket
Seal up：PTFE, flexible graphite
Actuator：Pneumatic actuator, electric actuator

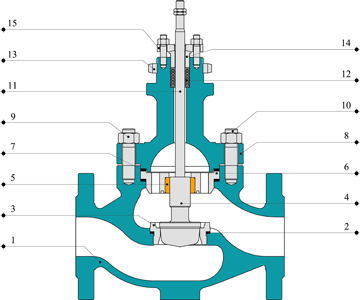

Structure and materials


1	Body	WCB	LCB	WC9	CF8	CF8M	CF3M
2	Shim	316+Graphite / FTFE
3	Seat	304	304	304	304	316	316L
4	Spool	304	304	304	304	316	316L
5	Copper sleeve	Cu / 316L			Cu / 316L
6	Guide sleeve	304	304	304	304	316	316L
7	Shim	316+Graphite / FTFE
8	Valve cover	WCB	LCB	WC9	CF8	CF8M	CF3M
9	Nut	304	304	304	304	316	316L
10	Stud	304	304	304	304	316	316L
11	Valve stem	304	304	304	304	316	316L
12	Packing	Graphite / FTFE
13	Lock nut	304	304	304	304	316	316L
14	Pressing ring	304	304	304	304	316	316L
15	Plate	304	304	304	304	316	316L
The above parameters for the standard configuration, soft seal can be specially made to order 6 seal. Valve inner part capable of providing spray welding hard alloy. Conventional materials for carbon steel and stainless steel two, according to the user site conditions custom special material control valve products.

Specification parameter

DN（mm） Inside diameter（in）		20 3/4	25 1	32 1-1/4	40 1-1/2	50 2	65 2-1/2	80 3	100 4	125 5	150 6	200 8	250 10	300 12
(KV)Flow coefficient	Straight line	6.9	11	17.6	27.5	44	69	110	176	275	440	690	1100	1760
(KV)Flow coefficient	Percent	6.3	10	16	25	40	63	100	160	250	400	630	1000	1600
Diameter (in)	Travel	Optional flow coefficient CV （★ Standard type ● Recommend ○ Customized）
20 3/4	16 mm	★
25 1	16 mm	●	★
32 1-1/4	25 mm	○	○	★
40 1-1/2		○	○	●	★
50 2		○	○	●	●	★
65 2-1/2	40 mm			○	○	○	★
80 3				○	○	○	●	★
100 4				○	○	○	●	●	★
125 5	60 mm						○	○	○	★
150 6								○	○	●	★
200 8								○	○	●	●	★
250 10	100 mm								○	○	●	●	★
300 12	100 mm								○	○	●	●	●	★
Pneumatic actuator		HA/B-22		HA/B-23			HA/B-34			HA/B-45			HA/B-56
Pneumatic actuator		350 cm²		350 cm²			560 cm²			900 cm²			1400 cm²
Mode of action	Spring range	Metal seal allows differential pressure （Mpa）
Gas opening	20-100Kpa	1.16	0.7	0.44	0.28	0.18	0.17	0.11	0.07	0.07	0.05	0.03	0.02	0.01
	40-200Kpa	3.34	2.14	1.31	0.84	0.53	0.51	0.33	0.21	0.21	0.15	0.09	0.06	0.04
	80-240Kpa	6.40	4.99	3.05	1.95	1.25	1.18	0.78	0.50	0.50	0.36	0.21	0.15	0.08
Gas off	20-100Kpa	2.23	2.14	0.87	0.56	0.36	0.34	0.22	0.14	0.14	0.1	0.06	0.03	0.02
	40-200Kpa	6.40	6.40	5.86	3.64	2.30	2.21	1.43	0.91	0.91	0.66	0.37	0.25	0.20
	80-240Kpa	6.40	6.40	6.40	5.04	3.18	3.06	1.98	1.26	1.26	0.92	0.52	0.47	0.35
电动执行机构 Electric actuator		金属密封允许压差（Mpa） Metal seal allows differential pressure （Mpa）
Thrust（N）	800	2.38
	2000	4.77	3.05	1.86	1.19	0.76
	3000			2.79	1.79	1.14
	5000			4.66	2.98	1.91	1.13	0.6	0.47
	6500						1.35	0.8	0.57	0.39	0.26	0.16
	10000									0.61	0.42	0.20	0.15
	16000									0.97	0.67	0.35	0.12	0.09

Performance

Flow characteristics		Equal percentage、Straight line
Adjustable range		50:1
Rated Cv value		The percentage etc：10～1400 Straight line：11-～1500
Allowable leakage		Metallic seal：Ⅳ (0.01% valve rated flow)；soft seal: v
Performance index	Driving mode	Pneumatic	Electric
	Intrinsic error %	± 1.0	± 1.0
	Return difference %	≤ 1.0	≤ 1.0
	Dead zone %	≤ 0.6	≤ 1.0
	Switch deviation %	± 2.5	± 2.5
	Deviation of stroke %	≤ 2.5	≤ 2.5
